Case Packing

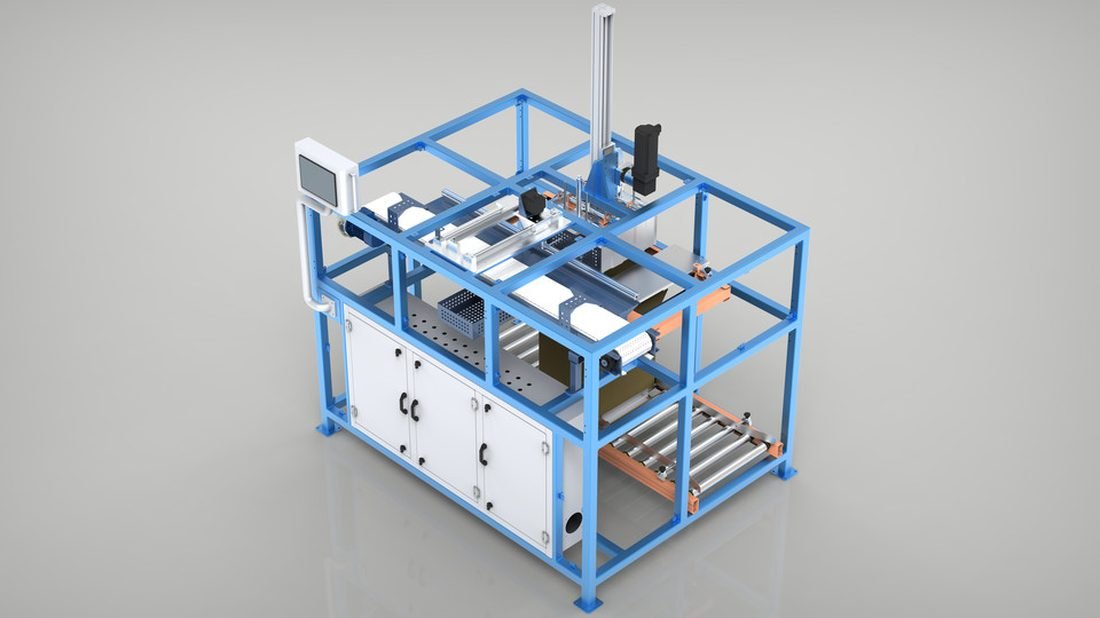

Gravity-fed case loading for flexible and rigid products.

Core Function

Count, collate, and gravity-drop products into open corrugated cases.

Key Features

• Motor-driven infeed and gravity filling chute
• Optical counting with adjustable centring device
• PLC logic, digital HMI, recipes and alarm display

Operating Principle Products arrive on the infeed, an optical device counts the required quantity, and an adjustable chute releases the completed collation into an open RSC case.

Applications FMCG • food & beverage • pharmaceuticals • personal care • consumer goods

AU-CPD-10AU-CPD-15AU-CPD-20AU-CPD-25

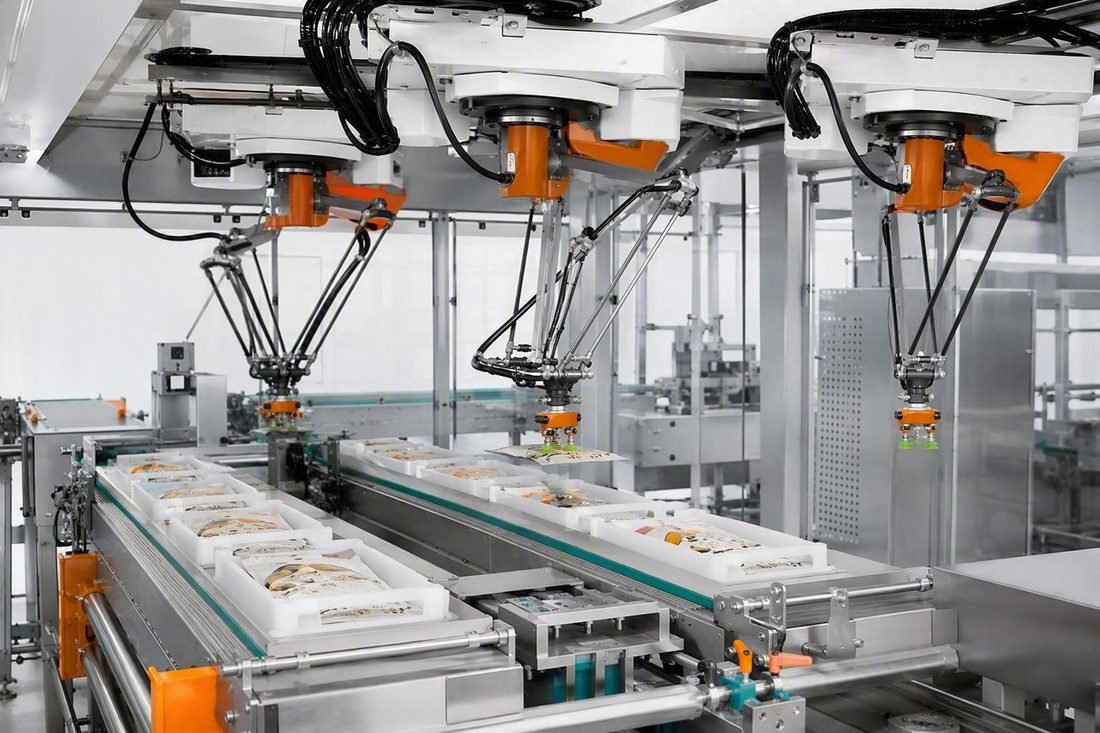

High-speed, vision-guided top loading for lightweight products.

Core Function

Pick products at speed and place them accurately into top-load packs.

Key Features

• Vision supports random or mixed product flow
• Product tracking follows moving conveyor belts
• Payload capability up to 5 kg
• Hygienic, modular design with easy component access

Operating Principle A vision or pattern-based controller tracks products on a moving belt; parallel-axis delta motion executes rapid pick-and-place into trays, cartons, or cases.

Applications Sachets • pouches • bars • small cartons • lightweight rigid products

AU-CPS-1RAU-CPS-2RAU-CPS-3RAU-CPS-4R

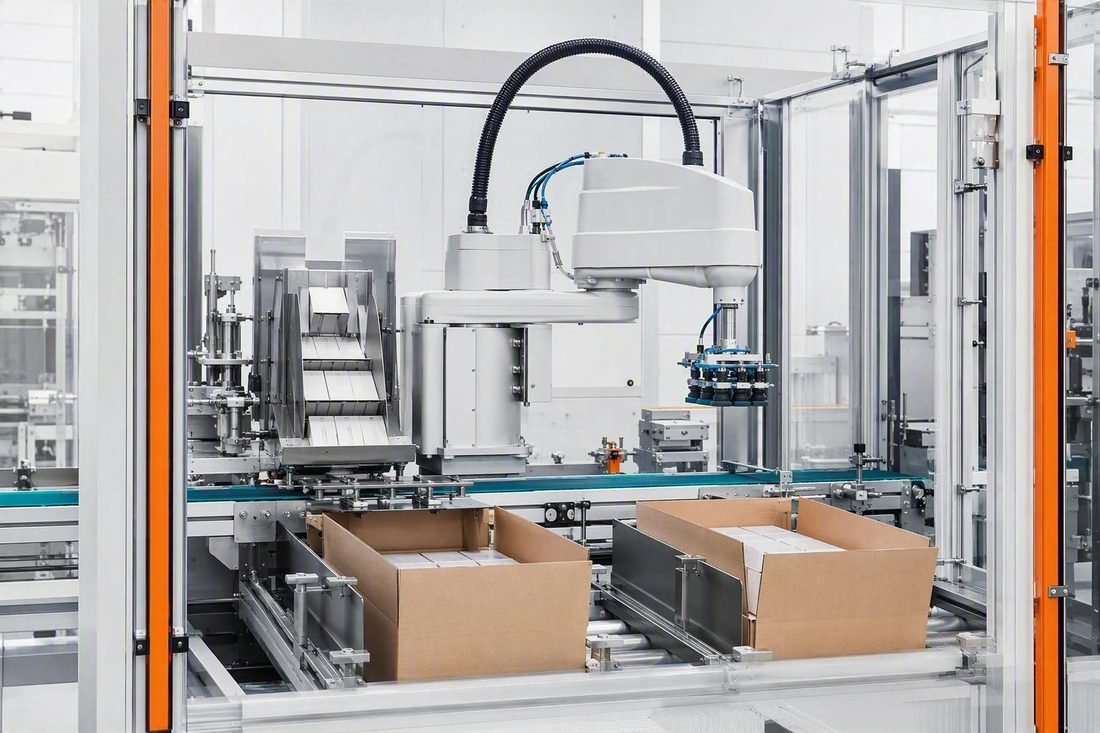

Compact and repeatable top loading for medium- and high-speed lines.

Core Function

Use precise SCARA motion where space, speed, and repeatability matter.

Key Features

• Advanced servo control for accuracy and high duty
• Conveyor tracking enables picks while products move
• PC or tablet teaching interface simplifies setup
• Monoblock option available with case erection

Operating Principle Servo-driven SCARA motion combines fast horizontal movement with precise vertical placement, while conveyor tracking supports picking without stopping product flow.

Applications Lightweight food packs • pharma cartons • cosmetics • consumer goods

AU-CPSR-1RAU-CPSR-3RAU-CPSR-4RAU-CPSR-5R

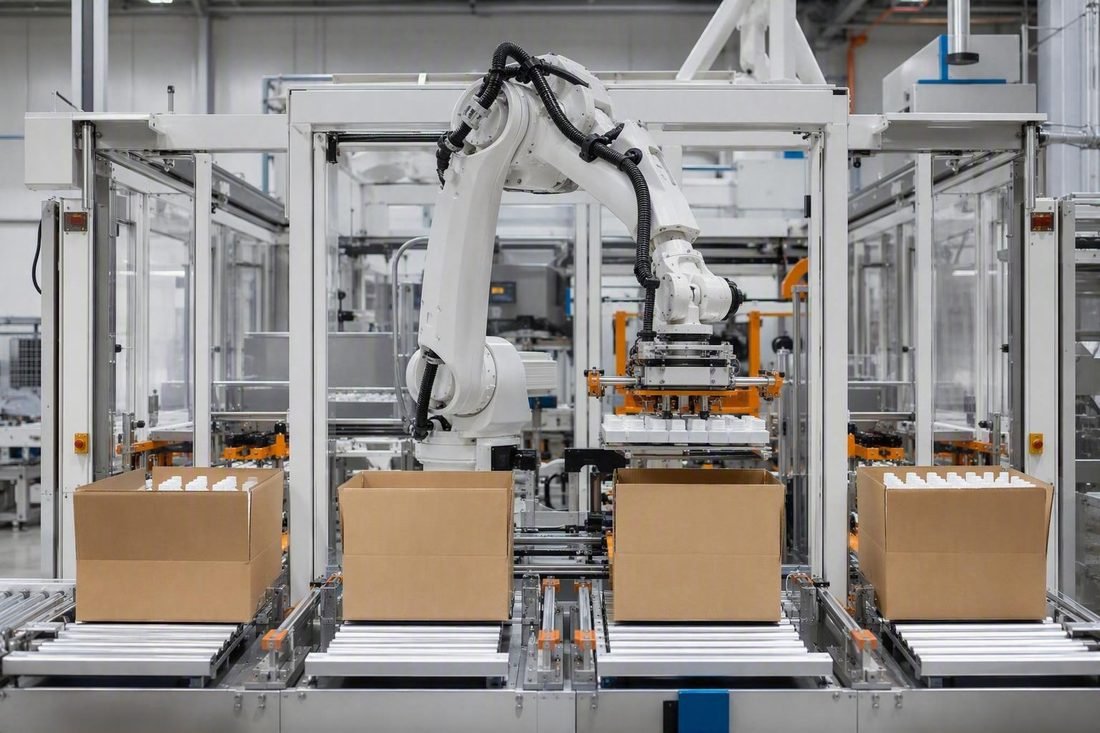

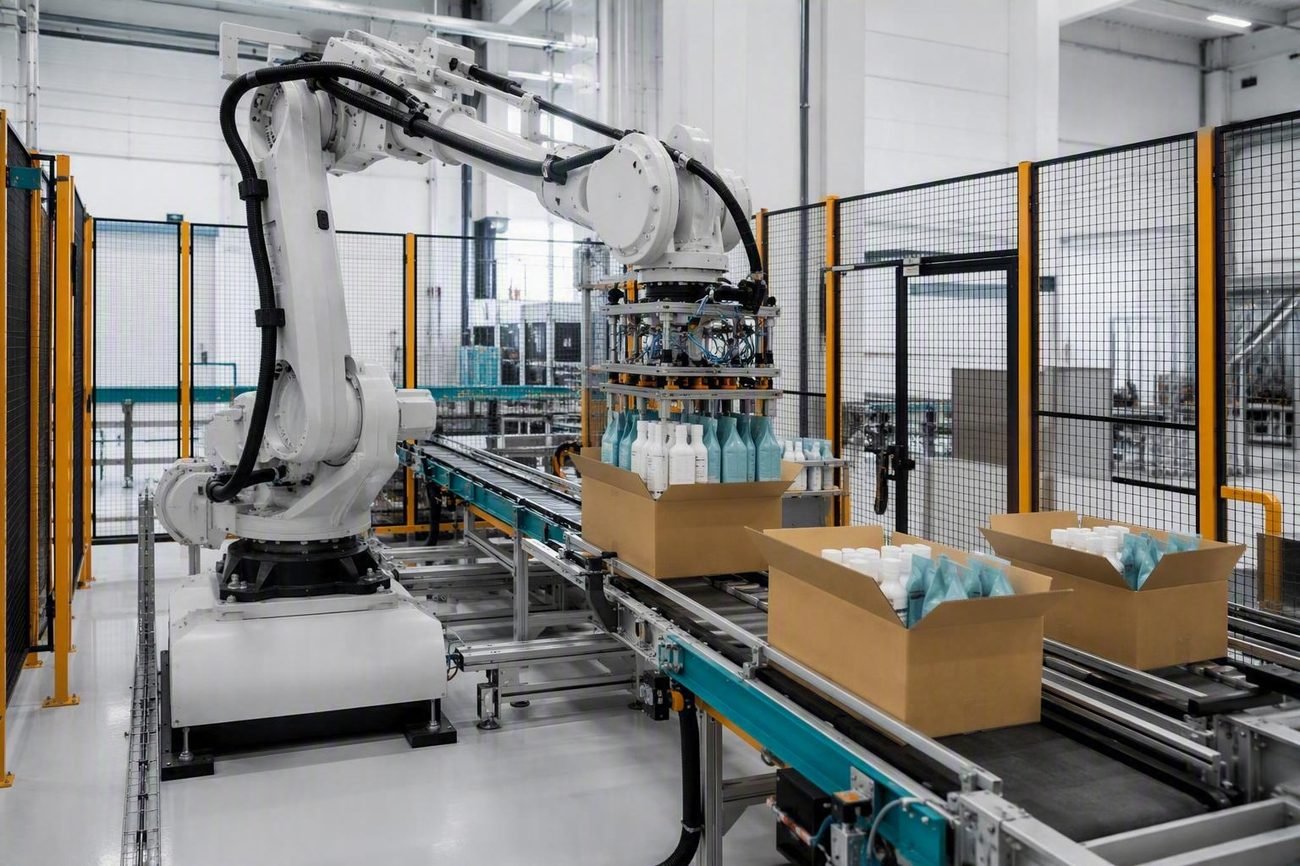

Flexible robotic packing across diverse products and case formats.

Core Function

Apply articulated reach and payload to demanding packing layouts.

Key Features

• High-precision movement and product positioning
• 14–15 cycles/min, application dependent
• Robust, open and ergonomic machine structure
• CE-compliant platform stated in supplied profile

Operating Principle A multi-axis articulated robot selects the correct gripper and trajectory for each pack pattern, providing reach, payload, and flexibility across varied layouts.

Applications Bottles • cans • jars • bricks • pouches • bags • crates

AU-CPIR-3CAU-CPIR-5CAU-CPIR-6CAU-CPIR-TC

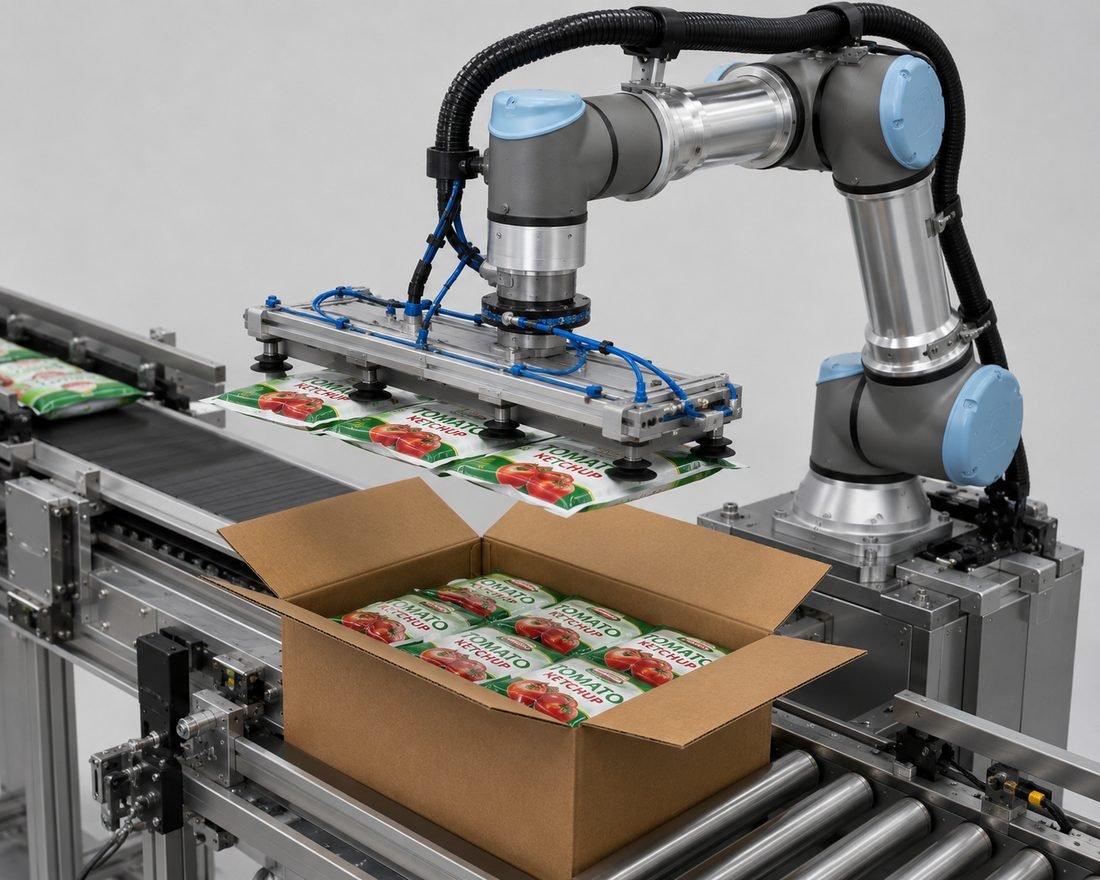

Collaborative case forming and packing in a compact cell.

Core Function

Form cases and pack products in a compact collaborative cell.

Key Features

• Up to 7–8 cycles/min, product dependent
• Payload up to 30 kg; lower-payload options available
• Vertical case magazine and bottom sealing
• Easy integration without a conventional robot cage

Operating Principle The cobot erects a flat case from the magazine, seals the bottom, then packs products while safety functions enable closer human-machine collaboration.

Applications Low-volume FMCG • personal care • specialty products • mixed formats

AU-CPER-1CAU-CPER-2C

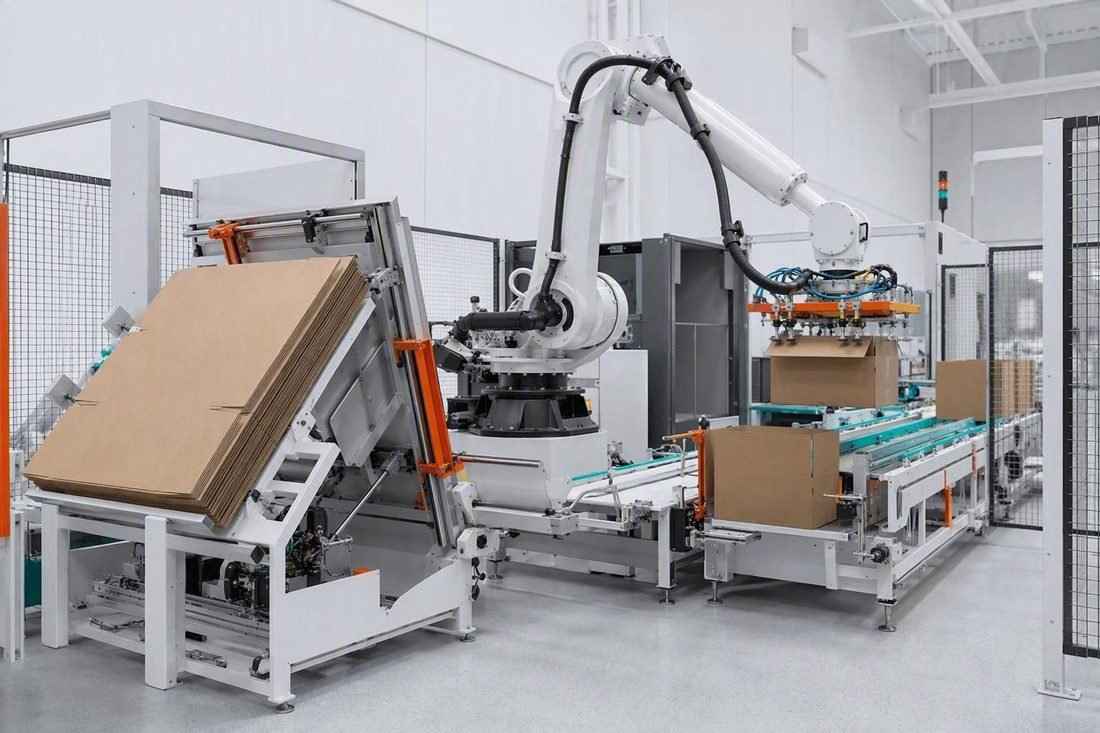

Combines case erection and top loading in one robotic cell.

Core Function

Combine case erection and top-load placement in one automated cell.

Key Features

• Compact robot with high payload capability
• Handles bottles, cans, jars, bricks, and cups
• Supports multiple case sizes and formats
• Designed to integrate with existing manufacturing flow

Operating Principle A compact high-payload robot alternates between case-forming tasks and top-load product placement, combining two end-of-line operations in one cell.

Applications Bottles • cans • jars • cups • bricks • crates

AU-RPER-1CAU-RPER-2CAU-RPER-4C

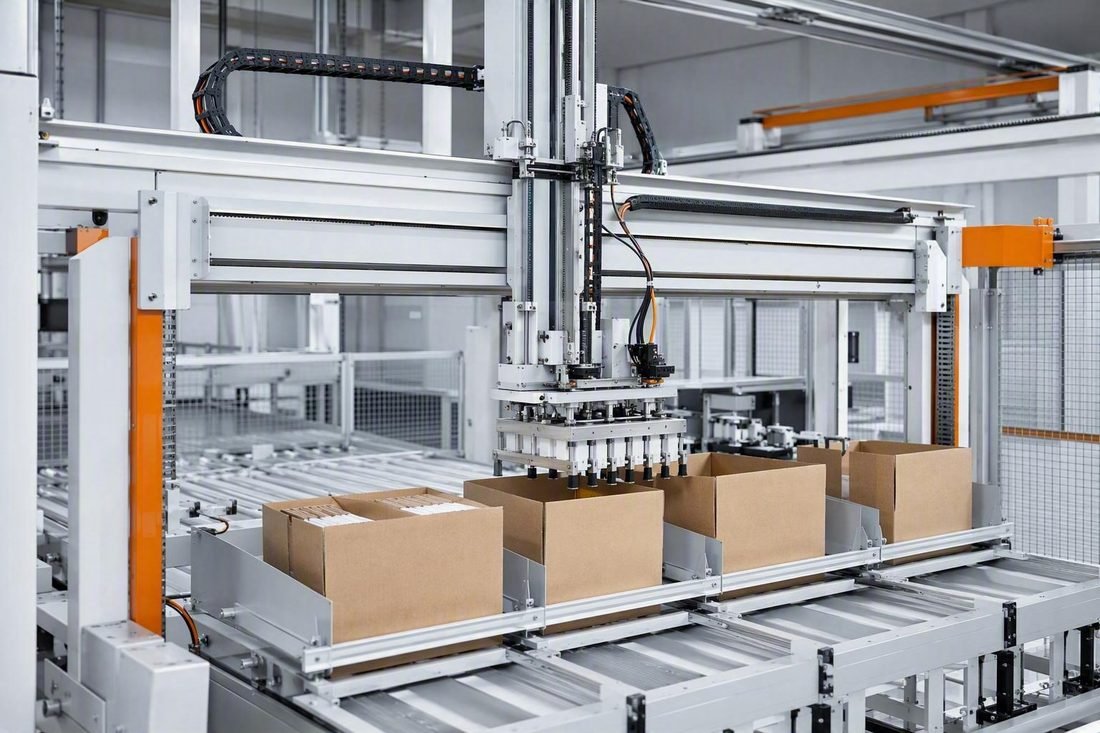

Servo-controlled vertical loading at high production speeds.

Core Function

Load products vertically into American cartons or crates.

Key Features

• 10–18 cycles/min, depending on application
• Up to 300 products/min or 30 cases/min
• High payload with precise positioning
• Flexible for pouches, bottles, cans, jars, and bricks

Operating Principle Two servo-controlled gantry axes pick arranged products from the infeed and execute repeatable vertical loading into RSC cases or crates.

Applications Pouches • bottles • cans • jars • bricks • rigid packs

AU-GTP-1200AU-GTP-3200AU-GTP-2T4200AU-GTP-2T2S5600

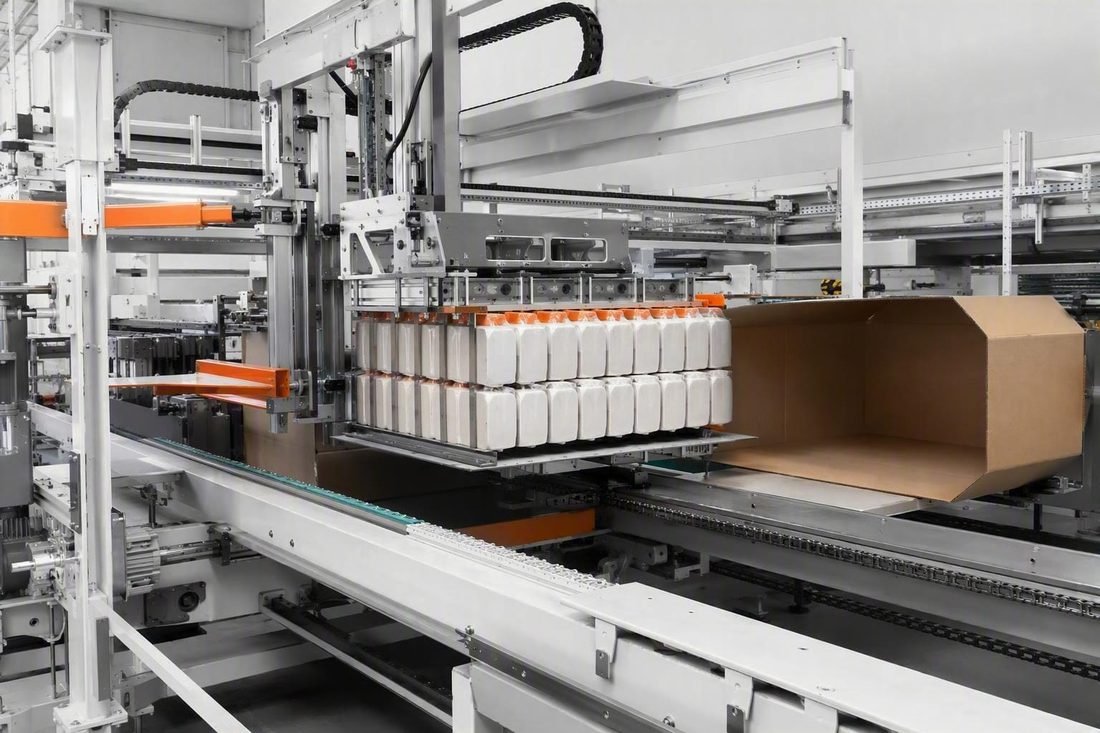

Builds and horizontally loads complete product matrices.

Core Function

Stack rows, form a matrix, and push it into an opened case.

Key Features

• One-side operation with ergonomic blank magazine
• Product infeed adapts to the required packing matrix
• Easy changeover with low-wear design
• Belts and compression rollers keep cases square

Operating Principle Incoming packs are grouped into rows, stacked into the required matrix, and pushed horizontally into a case held square by guides and compression elements.

Applications Mono-cartons • bag-in-box formats • personal care • pharma • consumer goods

AU-SL-1000AU-SL-3000AU-SL-5000

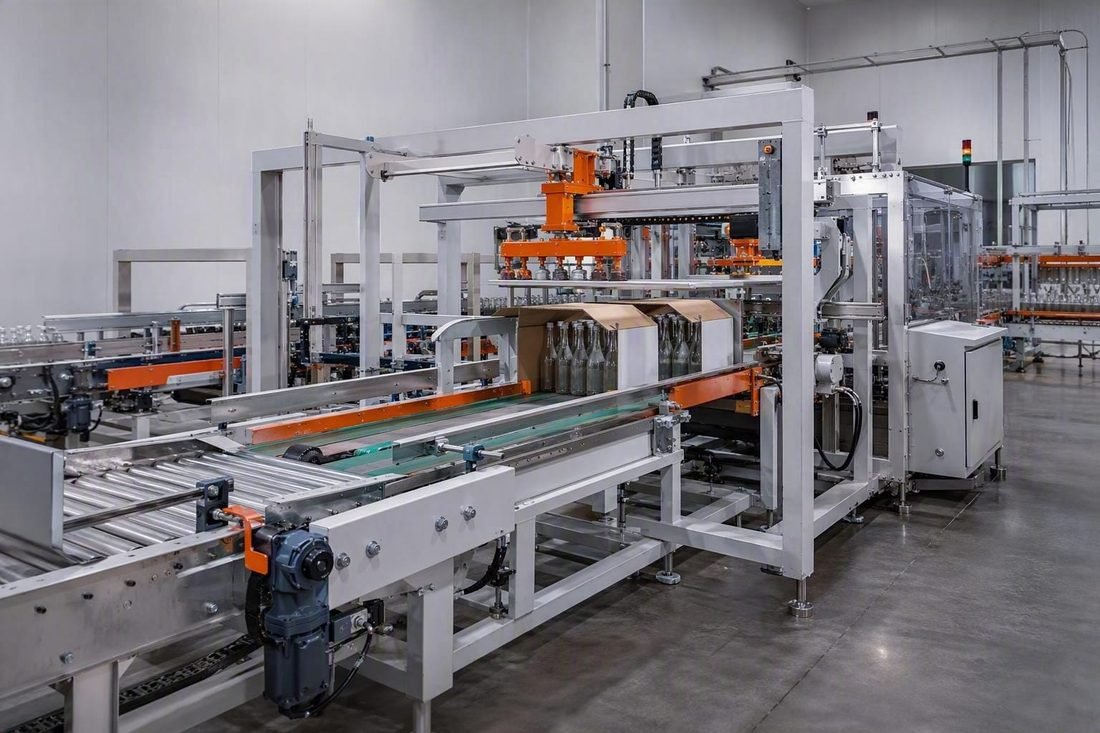

Forms cases or trays directly around grouped products.

Core Function

Form corrugated board around products for efficient secondary packaging.

Key Features

• 5–30 packs/min with 10 kW stated power
• Full case, full tray, half tray, and shelf-ready formats
• High-capacity blank magazine with low-level control
• Options: label, checkweigh, metal detect, reject

Operating Principle Products are grouped while a corrugated blank is fed, folded, and sealed around them; optional inspection and labelling modules complete the pack.

Applications Bottles • cans • jars • multipacks • trays • shelf-ready packs

AU-WP-500AU-WP-1100AU-WP-2200
