Palletizing

High-payload robotic palletizing for demanding production lines.

Core Function

Build stable pallet patterns at production-line speed.

Key Features

• 90–200 kg stated load-handling range
• Up to 1,600 cycles/hour
• Independent servo-controlled multi-axis movement

Operating Principle The articulated robot picks cases or bags with a purpose-designed end effector and builds stored pallet patterns layer by layer at the required orientation.

Applications Cases • cartons • sacks • bags • chemicals • food & beverage

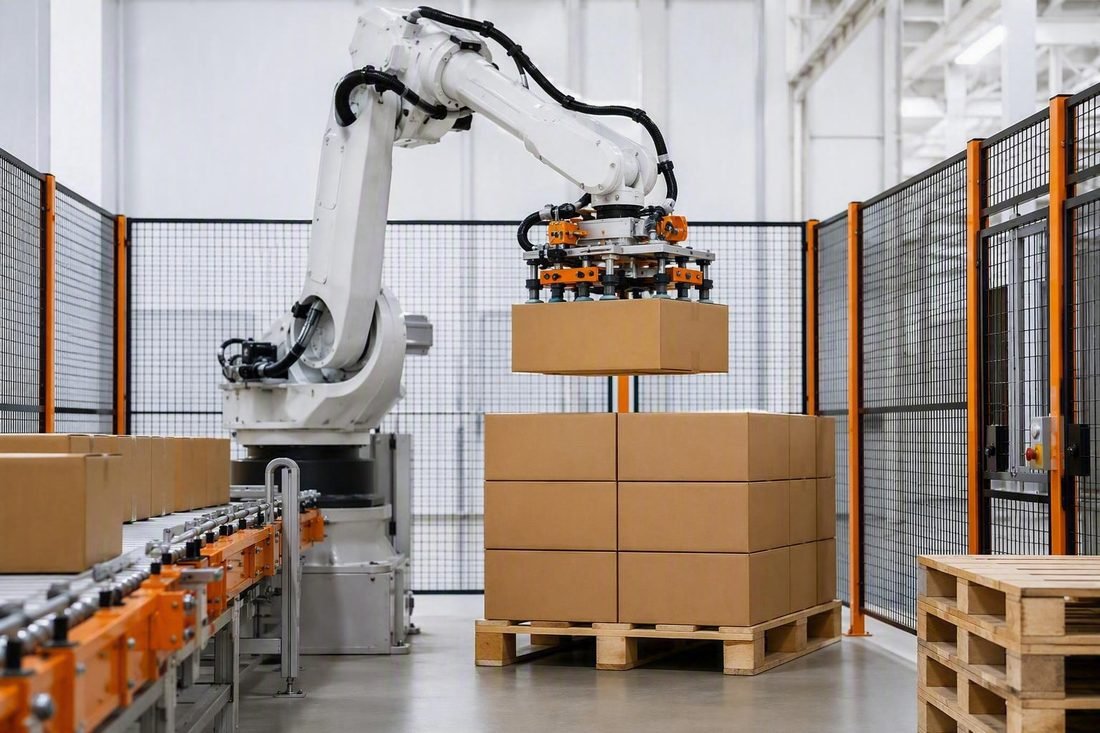

Industrial Robotic Palletizer

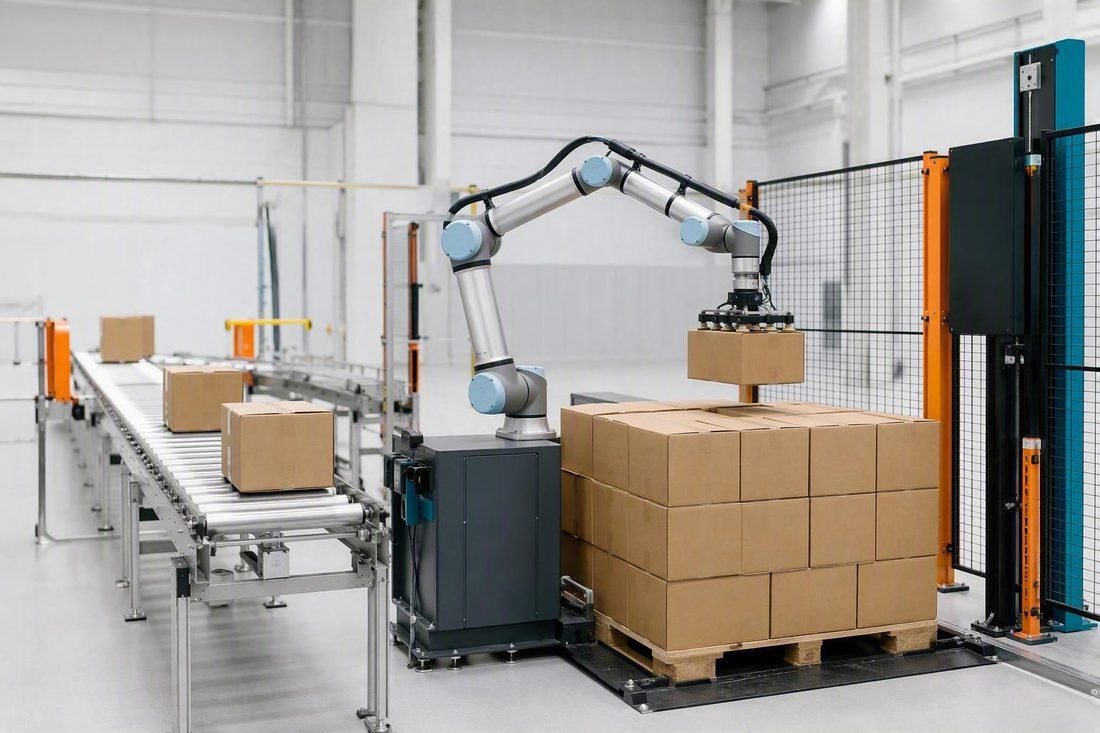

Flexible palletizing in compact, collaborative workspaces.

Core Function

Automate pallet loading where flexibility and space matter.

Key Features

• Flexible deployment in limited floor space
• Easy to install, program, and redeploy
• Shared-work capability with integrated safety functions
• User interface supports additional formats

Operating Principle A collaborative arm repeats programmed pallet patterns with force-limited safety functions, enabling easier redeployment as products or line layouts change.

Applications Small batches • variable SKUs • compact lines • consumer goods • pharma

Collaborative Robot Palletizer

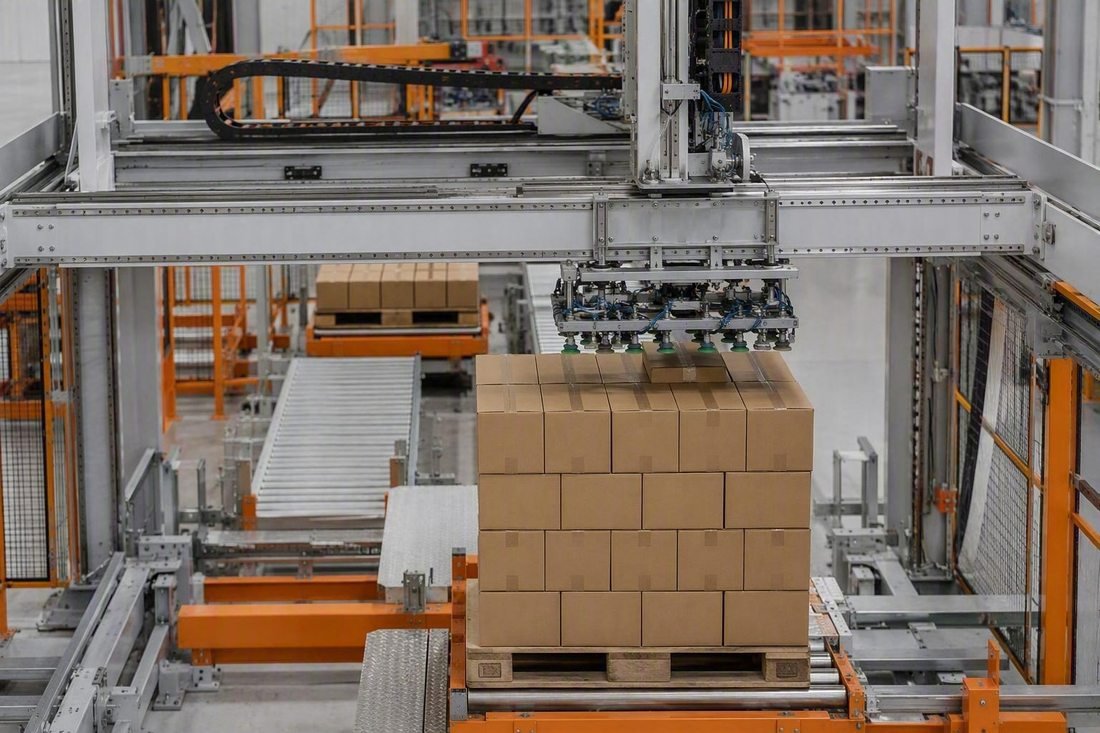

Servo-driven X-Y-Z gantry for programmable, high-SKU-variety palletizing.

Core Function

Place each case or layer through repeatable Cartesian (X-Y-Z) motion across one or more pallet positions.

Key Features

• Servo-driven X, Y and Z axes on an overhead frame
• Vacuum, clamp, or magnetic layer gripper by product type
• Large work envelope serves multiple pallet and slip-sheet stations
• Software-led changeover between pallet patterns and case sizes

Operating Principle A servo-driven Cartesian frame detects the case or layer, moves through a programmed X-Y-Z sequence, grips it, and places it on the active pallet pattern before returning for the next cycle.

Applications Multi-SKU case and carton lines • tin and can palletizing • heavy or large product formats • sites needing multiple pallet positions

AU-GTX-1SAU-GTX-2SAU-GTX-MP

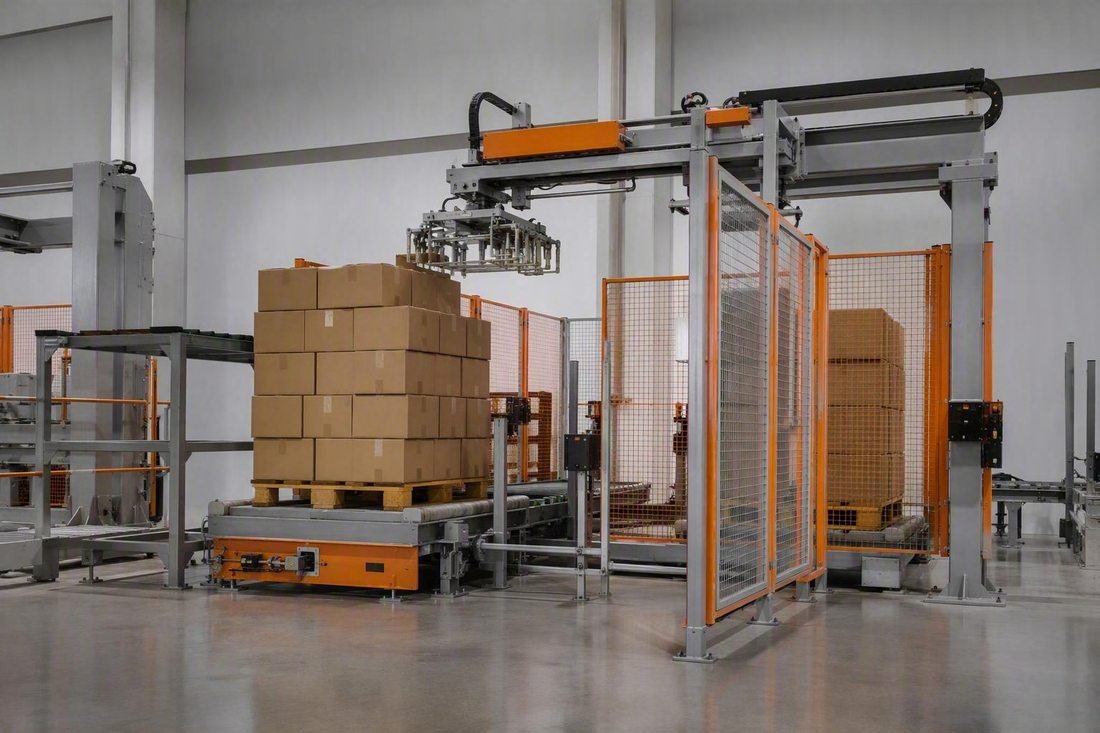

Compact layer-forming palletizer for high-volume, repeatable pallet patterns.

Core Function

Accumulate cases into a complete layer, then transfer the full layer onto the pallet in one motion.

Key Features

• Infeed conveyor with case alignment and accumulation
• Dedicated layer-forming table builds each layer before transfer
• Layer transfer mechanism moves the complete layer onto the pallet
• Compact footprint suited to straightforward line integration

Operating Principle Cases accumulate and align on the infeed, the layer-forming table arranges them into the target pattern, and the layer transfer mechanism moves the complete layer onto the pallet before the cycle repeats.

Applications High-volume, repetitive production • stable case geometry and pallet pattern • sites prioritizing a compact footprint and simple operation

AU-LLP-800AU-LLP-1200
